16 AWG 9 Conductor Wire, Shielded Low Voltage Cable, 50FT 100FT 200FT 300FT, UL Certified, Tinned Copper, PVC Insulated Hookup(50ft)

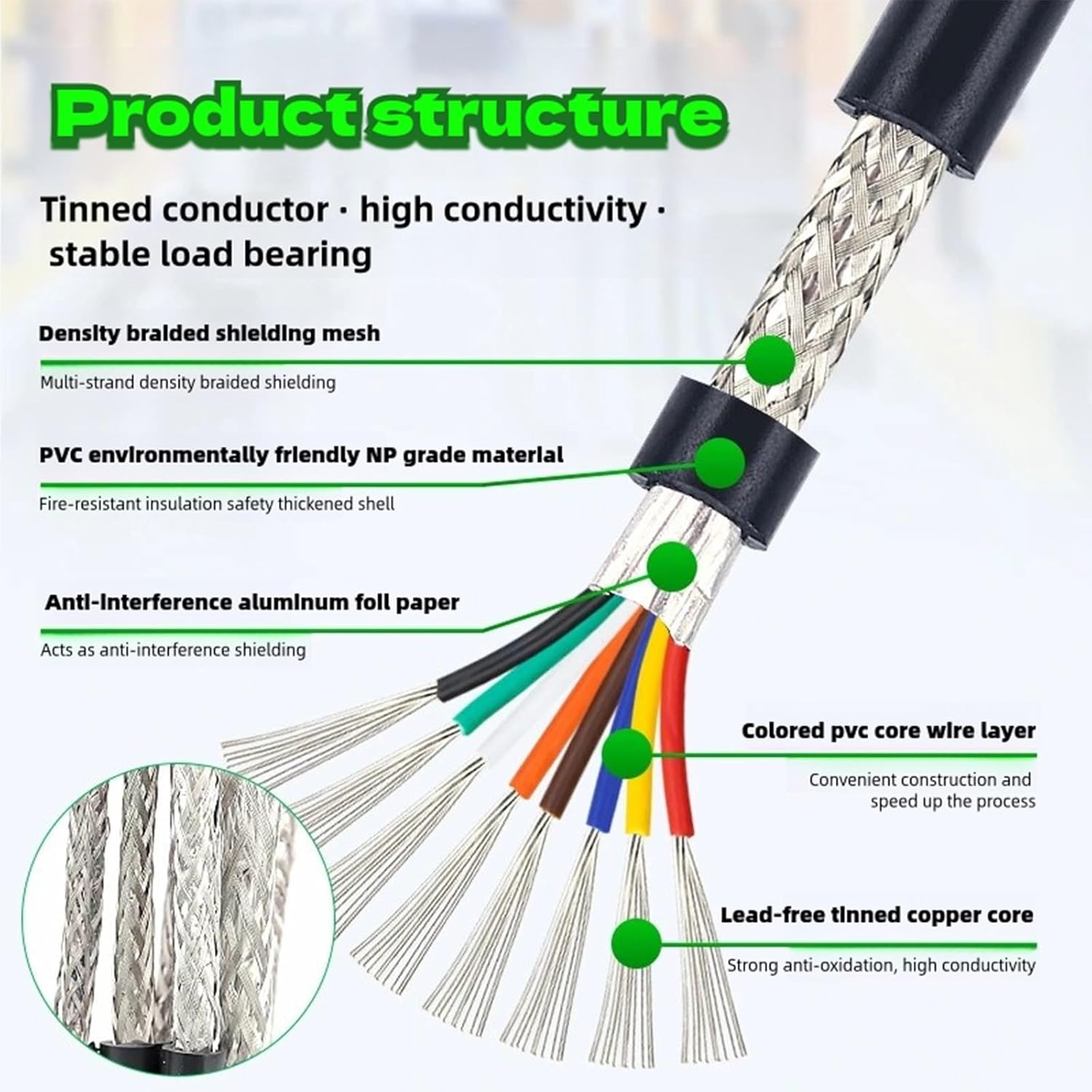

Specification:Rated voltage: 300VTest voltage: 2000VRated temperature: 80℃Conductor: tinned copper wire, strong corrosion resistanceInsulation: Special rigid PVC insulationInner Shield: Aluminum Foil Mylar Wrapped ShieldBraid: Bare copper wire or tinned copper wire braid shield.Sheath: PVC sheathPassed the VW-1 flame retardant test.Application standard: UL758Tinned copper wire:22 awg (2-5) Wires 17 0.16mm tinned copper wires inside each cable.20 awg (2-5) wires 21 0.178mm tinned copper wires inside each cable18 awg (2-5) wires 34 0.178mm tinned copper wires per cableTin plating not only improves the electrical conductivity, but also has excellent corrosion resistance and oxidation resistance, which can greatly extend the service life of the wire compared with ordinary copper cores. It's also better suited for welding.Product FeaturesPolyvinyl chloride has good mechanical properties, excellent electrical insulation properties, and stable chemical properties. Due to the use of new double-layer shielding of aluminum foil and copper mesh weaving, it can effectively resist electromagnetic wave interference. The twisted pair pitch has excellent anti-crosstalk characteristics and is suitable for the configuration of high-speed signal return lines.Notice:For example: "C" in 2C-16AWG indicates the number of coresOur products can be customized according to your needs, please contact us if necessary!

• Superior EMI/RFI Shielding：Aluminum foil + copper mesh double-layer shielding effectively blocks electromagnetic interference. Perfect for sensitive electronics, computers, and control systems
• Durable Tinned Copper Conductors：Multi-strand tinned copper wires ensure superior conductivity and long-lasting performance. The rigid PVC insulation provides excellent mechanical protection
• Wide Application & Compatibility：Ideal low-voltage cable for LED lighting, solar panels, inverters, car batteries, and office equipment. Slim design fits tight spaces effortlessly
• Premium Safety & Certification：UL & CE certified for guaranteed safety & quality. Flame-retardant PVC sheath resists burning, preventing fire hazards. Ensures secure use in diverse environments
• Flexible Configuration Options：Available in 7 to 20 cores (9-core in stock). Custom specs available on request. We ensure high quality and full customer satisfaction
