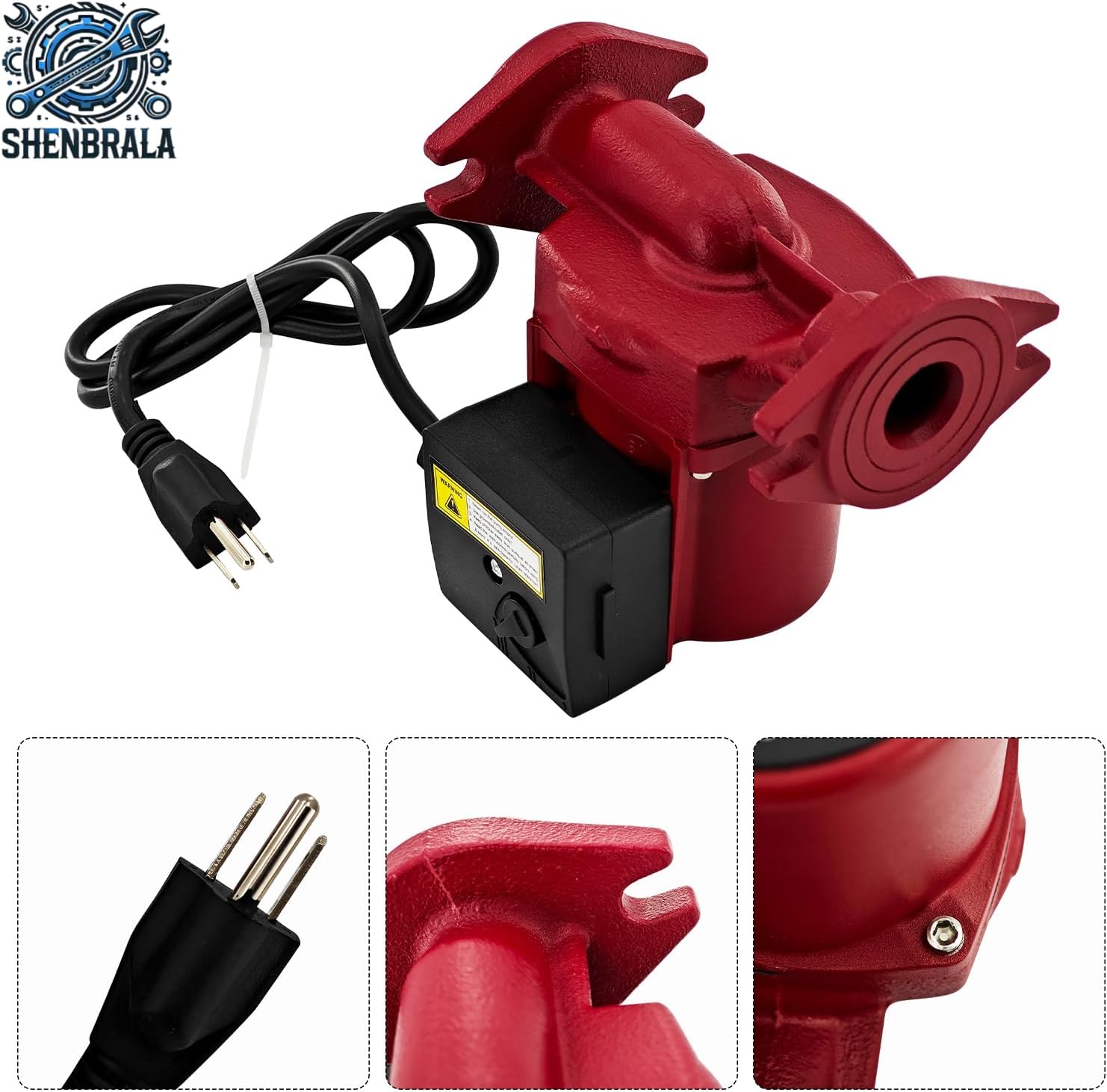

115V Cast Iron Circulator Pump 1/3 HP, Recirculator 2-Bolt Flange 1-1/4", 3-Speed Circulating Pump Replacement for Grundfos 95906630 UPS26-150F; for Heating, Water Circulation, Boiler and HVAC
Product details
| Management number | 210145113 | Release Date | 2026/04/02 | List Price | $124.80 | Model Number | 210145113 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Item Name: Circulator PumpWhat's in Box: Circulator Pump *1Item Condition: Brand NewManufacturer Part Number:Direct replacement for Grundfos UPS26-150F 95906630MaterialBody: Cast IronImpeller: Composite (PES & GF)Installation ParametersConnection Type: 2-Bolt Flange (PN 10)Flange Dimension: 1-1/4""Electrical ParametersVoltage: 115V (Single-phase)Frequency: 60 HzSpeed Levels: 3Speed 1: 2.5A - 262WSpeed 2: 3.1A - 346WSpeed 3: 3.4A - 376WInsulation Class: FThermal Protection: TF 230 ℉/ 110 ℃Liquid ParametersRated Flow: 26.9 US gpmMax Flow: 52 US gpmRated Head: 25.37 ftMax Head: 45.28 ftMax Operating Pressure: 145.04 psiLiquid Temperature Range: 35.6 - 230 ℉/ 2 - 110 ℃Max Ambient Temperature: 104 ℉/ 40 ℃Why Choose ShenBralaShenBrala Cast Iron Circulator Pump offers easy installation with a 1-1/4"" flange, perfect for heating, hot water, boiler, and HVAC systems. Durable cast iron and PES materials ensure long-lasting use. With 3-speed operation and up to 376W power, it delivers efficient performance. Backed by a 1-Year 𝐰𝐚𝐫𝐫𝐚𝐧𝐭𝐲.
- 𝐏𝐚𝐫𝐭 𝐍𝐮𝐦𝐛𝐞𝐫: Direct replacement for Grundfos UPS26-150F 95906630
- 𝗪𝗶𝗱𝗲 𝗔𝗽𝗽𝗹𝗶𝗰𝗮𝘁𝗶𝗼𝗻: 1-1/4" Flange (2-Bolt) is adopted for easily install, maintain and excellent compatibility; perfect for various closed circulation systems, as heating, hot water circulation, boiler systems and HVAC applications (Comes with flange kit)
- 𝗗𝘂𝗿𝗮𝗯𝗹𝗲: The pump body is made of premium cast iron while the impeller is made form PES composite material, makes it durable and strong for long life operation and reducing maintenance needs
- 𝐄𝐟𝐟𝐢𝐜𝐢𝐞𝐧𝐜𝐲 & 𝐒𝐚𝐟𝐞𝐭𝐲: The 3-speed pump operates upto 1/3 HP at 115V; At currents of 2.5A, 3.1A and 3.5A, respectively, it delivers power of 262W, 346W and 376W; With powerful performance and Class F insulation, it offers flexibility for various needs and safety
- 𝗧𝗲𝗰𝗵 𝗗𝗮𝘁𝗮𝘀: Recirculate pump offers a 26.9 US GPM rated flow and 52 US GPM maximum flow, with a head range of 25.37-45.28 ft; It works at liquid temp from 35.6 to 230°F and handles up to 145 psi for reliable and efficient
- 𝗪𝗼𝗿𝗿𝐲 𝗙𝗿𝗲𝗲: Based on strict quality control, we believe the cast iron circulator pump will work well for you; In case of any issue, ShenBrala will provide a 1-Year after support for peace of mind
| Color | Red |
|---|---|
| Voltage | 115 Volts |
| Flow Rate | 52 Gallons Per Minute |
| Brand Name | ShenBrala |
| Unit Count | 1.0 Count |
| Manufacturer | ShenBrala |
| Model Number | 95906630, UPS 26-150F, UPS26-150F |
| Power Source | Corded Electric |
| Material Type | Body: Cast Iron, Impeller: Composite (PES & GF) |
| Product Style | Commercial, Domestic |
| Included Components | Accessories Kit *1, Circulator Pump *1 |
| Maximum Lifting Height | 45.28 Feet |
| Item Dimensions L x W x H | 8.4"L x 7.2"W x 7.2"H |
| Manufacturer Warranty Description | 1-Year Product Defect Warranty, 30-Day Return |
| EU Spare Part Availability Duration | 1 Years |
